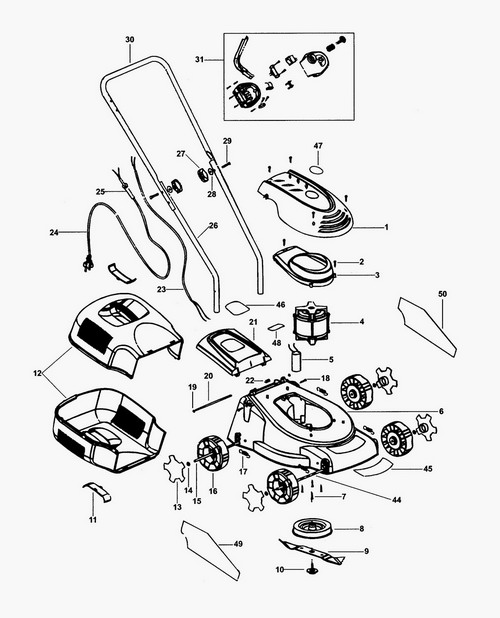

Model. GR298
Price List
| No. |
CODE |
DESCRIPTION |
PRICE |
| 1 | 596027-00 | COVER | 300.00 |
| 2 | 596028-00 | SCREW | 5.00 |
| 3 | 596029-00 | MOTOR COVER | 150.00 |
| 4 | 596030-00 | MOTOR | 2,500.00 |
| 5 | 596031-00 | CAPACITOR | 150.00 |
| 6 | 596032-00 | CUTTER DECK | 1,500.00 |
| 7 | 596033-00 | SCREW | 5.00 |
| 8 | 596034-00 | FAN | 300.00 |
| 9 | 596035-00 | BLADE | 350.00 |
| 10 | 596036-00 | BLADE BOLT | 80.00 |
| 11 | 596037-00 | INSERT | 60.00 |
| 12 | 596038-00 | GRASSBOX | 300.00 |
| 13 | 596039-00 | COVER | 15.00 |
| 14 | 596040-00 | LOCKING RING | 15.00 |
| 15 | 596041-00 | AXLE REAR | 15.00 |
| 16 | 596042-00 | WHEEL | 150.00 |
| 17 | 596043-00 | SPRING | 10.00 |
| 18 | 596044-00 | SCREW | 5.00 |
| 19 | 596045-00 | RING | 10.00 |
| 20 | 596046-00 | ROD | 10.00 |
| 21 | 596047-00 | GRASSFLAP | 150.00 |
| 22 | 596048-00 | SPRING | 10.00 |
| 23 | 596049-00 | MOTOR CABLE | 180.00 |
| 24 | 596050-00 | CORDSET | 180.00 |
| 25 | 596051-00 | CORD PROTECTOR | 60.00 |
| 26 | 596052-00 | LOWER HANDLE | 150.00 |
| 27 | 596053-00 | KNOB | 60.00 |
| 28 | 596054-00 | WASHER | 10.00 |
| 29 | 596055-00 | BOLT | 60.00 |
| 30 | 596056-00 | HANDLE UPPER | 150.00 |
| 31 | 596057-00 | SWITCH SA | 600.00 |
| 31 | 596087-00 | SWITCH SA | 600.00 |
| 44 | 596089-00 | AXLE | 150.00 |
| 45 | 596090-00 | BRAND LABEL | 15.00 |
| 46 | 596091-00 | RATING PLATE | 15.00 |
| 47 | 596092-00 | WARNING LABEL | 15.00 |
| 48 | 596058-00 | RATING PLATE | 15.00 |
| 49 | 596059-00 | LABEL | 15.00 |
| 50 | 596060-00 | LABEL | 15.00 |
